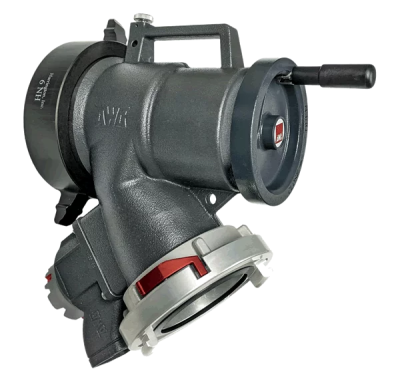

Harrington H500S: 5" Stainless Steel Piston Intake Valve - Storz

SKU: H500S
Call for lead time: Lead times vary per size

Price:

$1550.00

Write a Review

0 Review(s)

Overview Reviews Tell a Friend

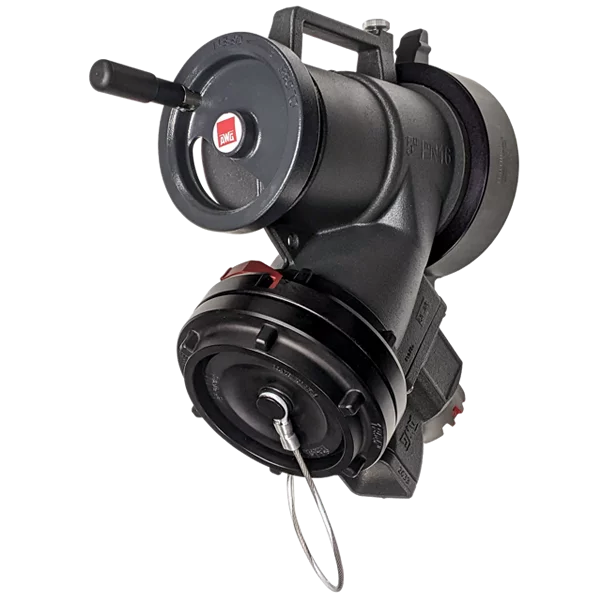

Harrington H500s Piston Intake Valve

The Harrington H500S stainless steel piston intake valve is designed to relieve excess pressure from the intake side of the pump and is used for pumper intake control. Five year warranty against corrosion.

Provides the following features:

Integrated 45 degree elbow

Field adjustable pressure relief valve (adjustable from 75-250 psi)

Air bleeder valve.

5" valve body
Smooth Open and Close

Inlet is a stainless steel piston, sleeve and spindle for corrosion protection .

DIMENSIONS: Extension 10.5″ x W 8″ x H 17″

Wt. 27 lb. & 48lb.

Female outlet is a NST thread

5 year warranty against corrosion

Friction loss at 1,000 GPM is 2.30 PSI

STORZ	FEMALE SWIVEL	PART NUMBER

4"	4.5" NH	H500S-40-45NH
4"	5" NH	H500S-40-50NH
4"	6" NH	H500S-40-60NH
5"	4.5" NH	H500S-50-45NH
5"	5" NH	H500S-50-50NH
5"	6" NH	H500S-50-60-NH
5" FULL TIME SWIVEL	4.5" NH	H500S-50-45NH/FTS
5" FULL TIME SWIVEL	5" NH	H500S-50-50NH/FTS
5" FULL TIME SWIVEL	6" NH	H500S-50-60NH/FTS
6" STORZ	4.5"NH	H500S-60-45NH
6" STORZ	5" NH	H500S-60-50NH
6" STORZ	6" NH	H500S-60-60NH

Warranty: All Harrington, Inc. products are warranted to be free of defects in material and workmanship for a period of one (1) year. H500S and H1000 have a five (5) year corrosion warranty.
