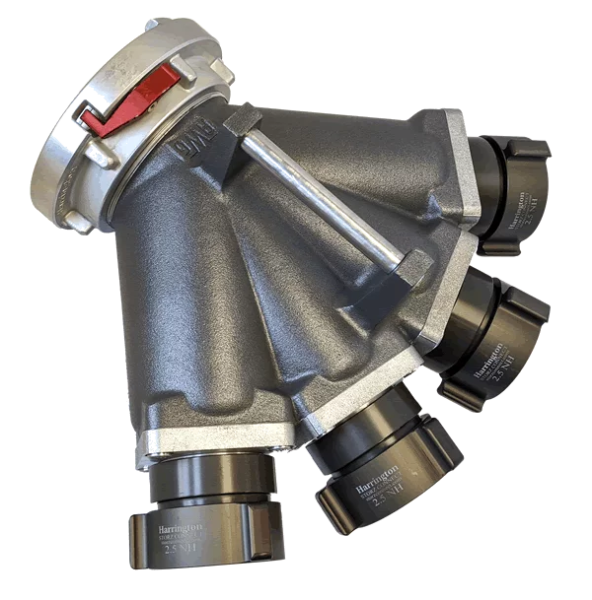

Harrington H440 4 Way Siamese Valve

The Harrington H440 4-Way Siamese Valve is used for supplying one LDH line from up to four smaller lines.

FEATURES:

• Light weight anodized corrosion resistance all metal construction.
• Each inlet is Clappered individually and can be fed individually or from all four smaller lines.
• Features stainless steel clapper assemblies “forged” Storz heads, and stainless steel balls in swivel races.
• Includes a carrying handle.

Dimensions: Length: 15” Width: 19” Height: 9”
Weight: 15 lbs

Part Numbers:

H440-40-25NH: 4-way siamese clappered (4) 2.5” NH female swivel rocker lug inlet x 4” Storz lock outlet
H440-50-25NH:  4-way siamese clappered (4) 2.5” NH female swivel rocker lug inlet x 5” Storz lock outlet
H440-60-25NH 4-way siamese clappered (4) 2.5” NH female swivel rocker lug inlet x 6” Storz lock outlet

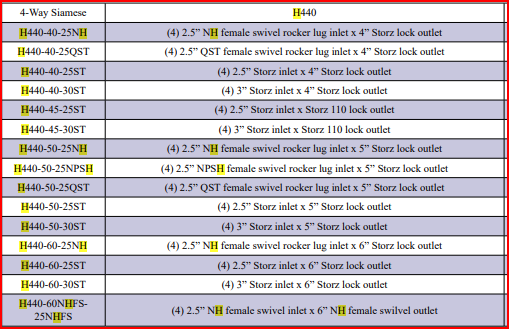

All sizes available shown below. Lead time varies per size. Please call or email for competitive quote.
