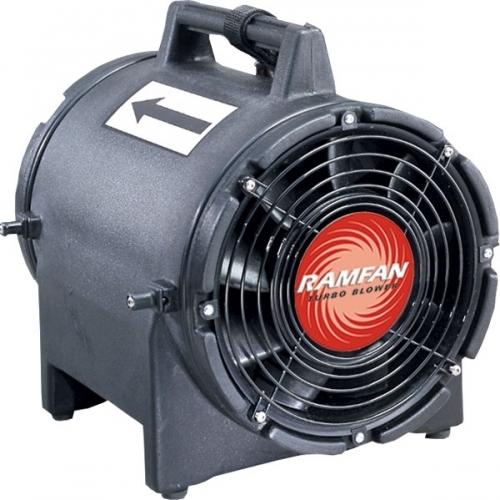

EURAMCO RAMFAN UB20xx 8" Hazardous Location Blower

Ramfan UB20XX 8" Hazardous Location Blower

The RamFan UB20XX EF7002 is a hazardous location blower with a totally enclosed motor safe for use in a variety of adverse atmospheres. Safely blow or exhaust hazardous gases with minimal risk of the fan causing a spark. It is the user’s responsibility to determine the suitability of equipment for the intended purpose

BLOWER FEATURES:

• Super compact and lightweight while delivering the highest CFM available in its class.
• Tough, weatherproof, flame retardant, chemical resistant, anti-static housing for hazardous locations.
• Ultra-quiet operation at 7 dB.
• Power cable is 25' long
• 1/3 hp, Single Phase Electric 115v
• Integrated Duct Adapter
• IP55 Water Tight rain tested Switch enclosure
• Thermally protected cutoff switch
• WHOLE-UNIT CERTIFICATION: The motor, power cable, cable glands, junction box, switch and housing have been certified by ATEX to not cause a spark in accordance to the limitations of the rating
• EX rated
• Durable, PC/ABS anti-static casing is weatherproof, dent resistant, v0 flame retardant and chemical resistant
• Starter secured in flameproof motor enclosure to prevent risk of ignition when powered on. Use pull switch to active ventilator
• 27 lbs

OPTIONS:

• EF7002 Blower Only

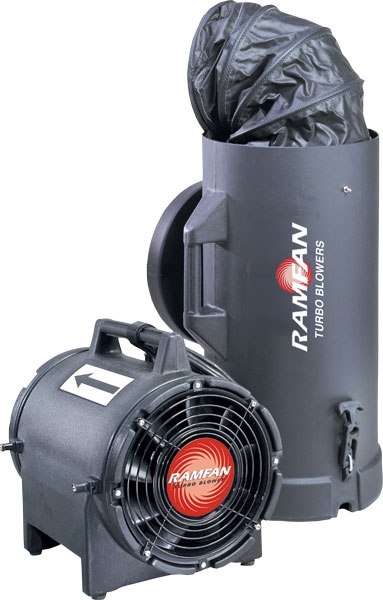

• EF7015 Blower with Quick Couple Canister & 15'/4.6 m duct
• EF7025 Blower with Quick Couple Canister & 25'/7.6 m duct

Certifications & Approvals
II 2 G Ex de IIB T6 Gb
IECEx UL Certificate #: 13.0062X
EC-Type Examination Certificate #: DEMKO 09 ATEX 0926969X
INMETRO Certificate #: UL-BR 13.0593X
CE Hazardous Location Marking: CE0539
Ingress Protection: IP55
Motor Part Number EM-F.33-60XPEX
IMPA Codes:
EF7002: 591416
EF8002: 591417
