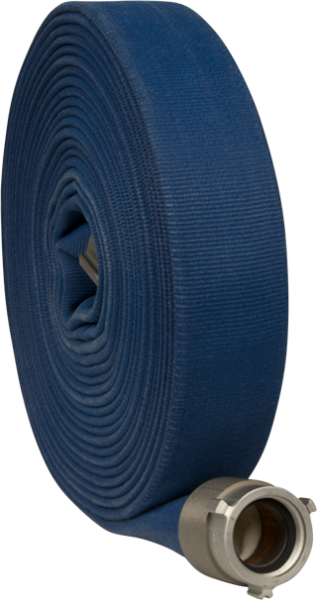

Key Fire Key-Lite Double Jacket Fire Hose

Key-Lite Double Jacket Fire Hose is an ultra lightweight fire hose designed for high rise applications

FEATURES:

• High strength, highly abrasion resistant filament polyester over a dependable polyurethane lining
• Ultra lightweight double jacket attack line
• Combines minimum weight with maximum flexibility and abrasion resistance
• Mildew, UV, chemical and ozone resistant
• Lining meets NSF Standard 61 for potable water
• 5-year liner delamination warranty
• 100% synthetic all polyester double jacket
• 100% mildew resistant
• Polyurethane liner
• Liner NSF-61 compliancesSpecial reverse twill construction to reduce friction loss by 50%
• 5 year warranty against delamination of liner

SPECIFICATIONS:

• Double jacket construction is tightly woven with filament polyester yarn in the filler and ring spun polyester yarn in the warp of both the inside and outside jackets. Double jackets encapsulate a single-ply extruded tube of synthetic polyurethane that is ozone resistant.
• Available with a special “Key-Lok” polyurethane based polymer impregnation for enhanced color and added abrasion resistance. A double dip process for twice the abrasion resistance is available upon request.
• Key-Lite can be coupled with 6061-T6 extruded aluminum threaded couplings or forged Storz. Special threads or other custom features available upon request.

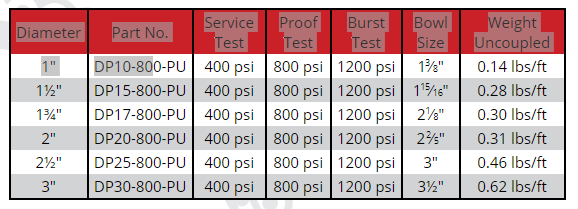

• The minimum burst test pressure when tested in accordance to NFPA 1961 on all Key-Lite hose up to 3" diameter shall be 1200 psi / 82 bar. Minimum burst test requirements for 4" diameter shall be 900 psi / 62 bar. Service test pressures stenciled on the hose shall be in accordance with current minimum requirements of NFPA 1962.
• Key-Lite hose meets and exceeds all performance requirements of NFPA 1961 and MIL-H-24606 latest edition standards.
